Most of the depth you see in 3D metal wall art is borrowed. Some comes from light, some from shadow, some from a gap behind the panel, and only occasionally from actual metal. That is no criticism. Once you know which trick a piece uses, you can predict how it will read across a room, what it weighs, and whether your wall can carry it.
Key Takeaways
Folding: one crisp crease in thin sheet catches a sharper highlight than a heavier gauge bent to a soft radius.
Layering: three stacked planes on spacers can suggest far more depth than they physically occupy.
Cast or fabricated relief: the depth is solid metal, so it reads from every angle, and it brings real weight.
Standoff brackets: the cheapest inch of depth available, but they do nothing for the face of the piece.
Living rooms: layered and relief work survive a seated, side-on view better than shallow folds.
Folding a Single Sheet: Why One Crisp Crease Beats a Thicker Gauge
Folding is the simplest way to give 3D metal wall art a sense of depth. A fold turns one flat sheet into two planes meeting at an edge. Light strikes one face, the other falls into shade, and the eye reads a ridge. Thin sheet bends to a tight inside radius, so the edge stays sharp and the highlight is a narrow, bright line. Heavier plate resists, the bend rounds off, and the highlight smears into a soft glow. You pay for more steel and get less drama.
In our studio we test folded panels by walking past them with a single lamp held low to one side. If the crease line stays clean as you move, the fold is doing its job. If it blurs, no amount of polishing will rescue it. The same principle drives paper relief work, where every shadow comes from a crease. Metal simply holds that crease for decades instead of years.

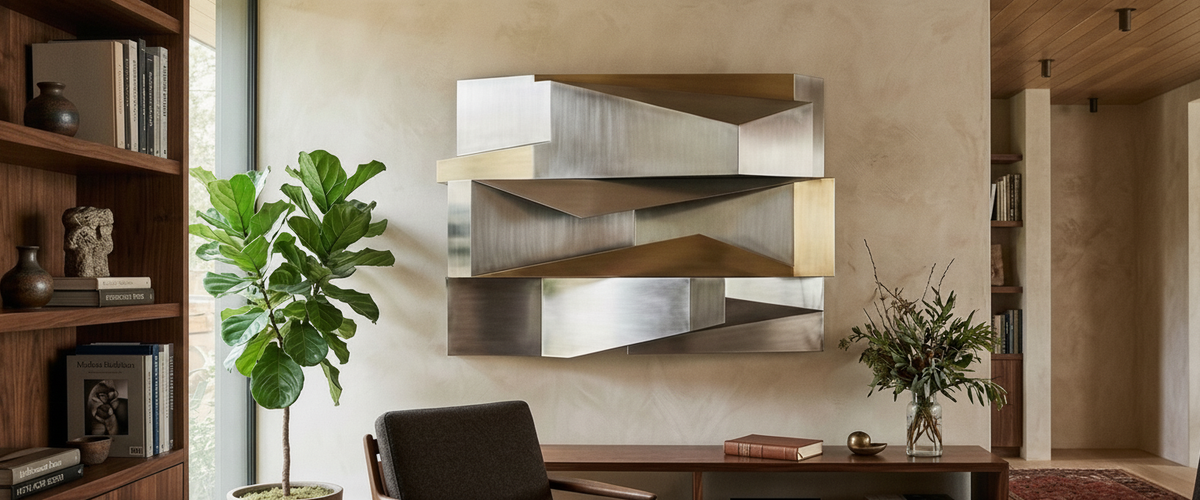

Layered Panels: Three Planes, a Foot of Apparent Depth
Layering is where most 3D metal wall art earns its depth. Stack three cut sheets on hidden spacers and the eye reads each gap as distance. Every layer throws a shadow onto the one behind, and those shadows do the heavy lifting. A panel only two inches (5 cm) deep can read like a foot (30 cm) of space, especially if the back plane is finished darker or matte so it recedes the way distant hills do.
Side light turns each spacer gap into a visible shadow line.
Layering also lets makers mix finishes across planes. Where a room wants color and metal working together rather than a single monochrome finish, a mixed-material piece such as Aurelios Cosmic Blue Crystal Porcelain & Gold Orbit 3D Wall Art sets a gold orbit forward of a deep blue field, so the warm metal catches the light while the color behind it falls back. That contrast is cheap to achieve in layers and very hard to fake on a single sheet.
Cast and Fabricated Relief: When the Depth Is Real Metal
Cast bronze and welded, fabricated relief are the honest end of 3D metal wall art. The forms project because they are solid, so they read correctly from the front, the side and from below. Nothing collapses when the lighting changes.
The catch is weight, and it climbs fast with scale. On a fabricated brass relief we shipped to an apartment on Manhattan's Upper East Side, the installer opened the plaster and added timber blocking between the studs before a single anchor went in. Plan that conversation before the crate arrives. If you love the sculpted look but the wall cannot take a metal load, carved timber relief such as Barwick Mocha Grid Abstract 3D Carving Wall Art gives genuine projection at a fraction of the weight.
Standoff Brackets: The Cheapest Inch of Depth
Mount any panel an inch (2.5 cm) or so off the wall and a shadow line appears around its edge. A flat piece suddenly floats. It costs a maker almost nothing, which is why you see it on so much 3D metal wall art.
Standoffs add depth around a piece, never within it. Viewed side-on, a cheap bracket system can also expose the gap and the hardware. Ask whether the fixings are concealed, whether they can be adjusted on an uneven wall, and whether the piece hangs on a cleat or on four separate points that all have to line up.
Steel, Aluminum, Brass or Stainless: Matching Metal to Method
Mild steel folds and welds cleanly, which makes it ideal for creased and fabricated work. It needs a powder coat or a sealed patina indoors.
Aluminum is light enough for wide layered panels and takes anodized or powder-coated finishes well; the Aluminum Association publishes useful background on how those finishes are produced.
Brass casts and engraves beautifully and warms any room, but it tarnishes unless lacquered or waxed. Use it for relief and for accent layers.
Stainless steel is stubborn to fold crisply in thicker sections, yet holds a mirror or brushed finish indefinitely. It suits layered and fabricated forms where the polish does the work. Grade matters in humid rooms, and worldstainless explains how the common grades differ.
3D Metal Wall Art for Living Room Walls: The Sofa Test
Above a sofa, most people see the art from below and from an angle: from the far cushion, from an armchair, from the kitchen island. A shallow fold lit straight on can flatten into a plain sheet from those seats. Layered panels hold up because their edges reveal the gaps as you move. Relief holds up best of all.
An angled spot keeps the shadows alive when viewed from the sofa.
Lighting decides more than the metal. A picture light mounted directly above washes the surface evenly and erases the very shadows you paid for. A ceiling spot angled from one side, roughly from where the room's main window sits, keeps the depth alive after dark. A client in Austin moved a single recessed light 18 inches (46 cm) sideways and told us the piece looked twice as deep.
A Buyer's Checklist Before You Commit
Ask which depth method the piece uses: folded, layered, relief, standoff, or a mix.
Get the total projection from the wall and the hanging weight in writing.
Find out what sits behind the drywall or plaster at the fixing height.
Sit on the sofa, look at the wall from the end seat, and imagine the piece from there.
Plan the light angle before choosing the finish.
Match the metal and coating to the room's humidity, especially near kitchens or pools.
When to Commission Instead
Off-the-shelf 3D metal wall art is sized for average walls. If your wall is long, double-height or interrupted by a fireplace, Giant Sculptures can build a bespoke panel scaled to the space, in the metal and depth method that suits your light. Budget depends on material, scale, complexity, engineering, installation and finishing, so we quote each commission individually. Browse our metal wall art collection to see finishes side by side, or explore the wider 3D wall art range before you brief us.
For wider placement ideas, How Deep Should 3D Wall Art Be? A Depth and Lighting Guide is useful companion reading before finalising the setting and sightlines.
